GROMAX>Horizontal Turning Center>Accessories

Cartridge Spindle for CNC Turning Center
J Series Cartridge Spindle for CNC Turning Center


TOP

GROMAX Cartridge Spindle J Series for CNC Turning Center




Specifications:
Model
Spindle Nose
Max. Speed
(rpm)
Motor
(HP)
Chuck Spec. (Ref.)
Diameter of Through Hole (mm)
Runout Accuracy in Taper (µm)
Max. Temperature Rise (°C)
Price
J160A2-4-37-80
A2-4
8000
5
5"
ø42
3
+20
$3,900.00
J-20A2-5-55-60
A2-5
6000
7.5
6"
ø51
3
+15
Call
J-20A2-5-75-50
A2-5
5000
10
8"
ø51
3
+15
$4,650.00
J270A2-6-110-40
A2-6
4000
15
8"
ø66
3
+20
$6,450.00
J270A2-6-150-35
A2-6
3500
20
10"
ø66
3
+20
Call
J270A2-8-200-24
A2-8
2400
27
10"/12"
ø86
3
+20
$10,875.00
J340A2-11-30-18
A2-11
1800
40
16"
ø100
3
+20
Call

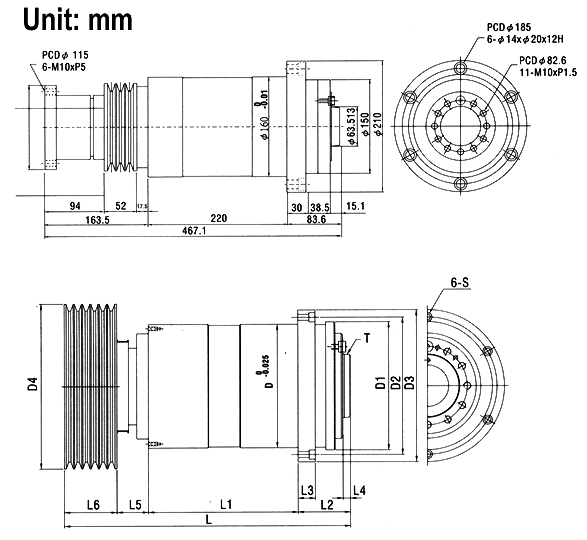

UNIT: MM
Model
T
D
D1
D2
D3
D4
S
L
L1
L2
L3
L4
L5
L6
J-20A2-5
A2-5
170
173
195
225
148
M10
374.8
195
68.8
30
13
26
85
J270A2-6
A2-6
200
202
220
240
189
M10
508
297
90
35
14
48
73
J270A2-8
A2-8
270
280
300
332
360
M12
617.5
323
113
37
16
68
113.5
J340A2-11
A2-11
340
258
390
430
400
M16
708.5
369
138
43
19
70
131.5
