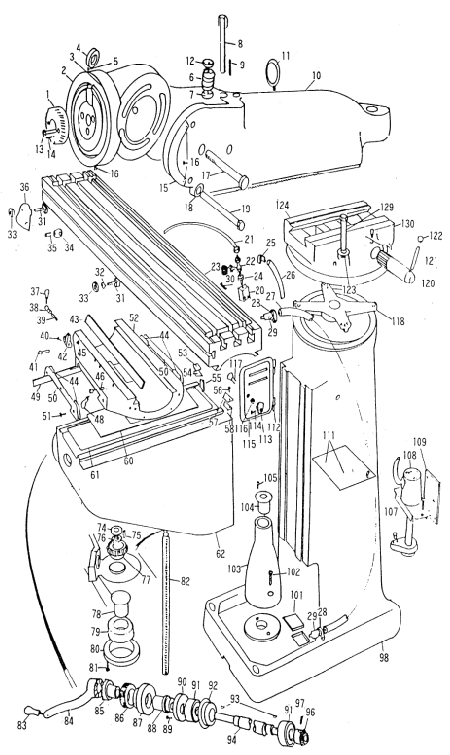

GROMAX Vertical Turret Milling Machine Spare Parts (C):

Model Descriptions Price
C001 Quill Housing Adjusting Gear $57.50
C002 Ram Adaptor $193.75
C003 Adaptor Scale $12.50
C004 Adaptor Pivot Stud Locknut $7.50
C006 Vertical Adjusting Worm $33.75
C007 Worm Thrust Washer Call
C008 Vertical Adjusting Worm Shaft Call
C009 Key 5x5x50 Call
C010 Ram Call
C011 Hook Call
C012 Worm Thrust washer Call
C013 5/16" x 1 1/4" Hex Socket Head Cap Screw Call
C015 Angle Plate Scale $10.00
C017 Adaptor Pivot Stud $22.50
C018 Washer $2.50
C019 Adaptor Locking Bolt $22.50
C023 Table Call
C031 Stop Piece T-Bolt Call
C032 Table Stop Piece Call
C033 3/8"-16 NC Hexagon Nut Call
C037 Table Lock Bolt Handle $22.50
C038 Saddle Lock Bolt Call
C039 Saddle Lock Plunger Call
C040 M10x20 Hex Socket Head Cap Screw Call
C041 Adjusting Screw $9.38
C042 Table Stop Bracket Call
C043 Saddle Table Gib $3.75
C044 Felt Wipers Call
C045 Cap Screw 3/8"-16 UNC x 3/4" Call
C046 Table Lock Plunger Call
C047 Table Lock Bolt $22.50
C048 Turret Scale Call
C049 Saddle Knee Gib $32.50
C050 Upper Knee Saddle Wiper $12.50
C051 W3/16" x 3/8" Cross Recessed Head Screw Call
C052 Saddle Call
C053 Left Hand Column Wiper Call
C055 Knee Column Gib $41.25
C056 W 1/4" x 5/8" Cross Recessed Head Screw Call
C057 Right Hand Column Wiper Call
C058 Knee Wiper $12.50
C060 Chip Guards (Up) Call
Model Descriptions Price
C061 Chip Guards (Down) Call
C062 Knee Call
C073 Washer Call
C074 1/2"-20 UNF Nut Call
C076 Washer Call
C077 Bevel Gear $46.88
C079 Ball Bearing #6205zz Call
C080 51305 Thrust $17.50
C082 Elevating Screw (Inch) $112.50
C083 Handle $10.00
C084 Elevating Crank $32.50
C085 Gear Shaft Clutch Insert $16.25
C086 Dial Lock Nut Call
C087 Dial with 100 Graduation (inch) $18.75
C088 Dial Holder $15.00
C089 1/4"-20 UNC Hex Socket Head Cap Screw Call
C090 Bearing Retariner Ring Call
C091 Ball Bearing #6204zz Call
C092 Bearing Cap Call
C093 Key 4x4x15 Call
C094 Elevating Shaft Call
C096 Bevel Pinion $36.25
C098 Column Call
C102 3/8"-1 1/2" Hex Socket Head Cap Screw Call
C103 Elevating Screw Housing Call
C104 Elevating Screw Nut (Metric) $68.75
C105 M6x25 Hex Socket Head Cap Screw Call
C108 1/8 hp Collant pump $150.00
C109 Zinc Plate Call
C110 Gib Lock Screw Call
C111 Zinc Plate Call
C118 Spider $85.00
C120 Ram Pinion $70.00
C121 Pinion Handle Call
C122 f 35 Ball 3/8" x 16 NC Call
C123 Spring Waher Call
C124 Turret Call
C126 Ram Lock Plunger Call
C127 Locking Bolt Call
C128 Rma Pinion Set Call
C129 Split Pin Call
C130

Set Screw

Call
