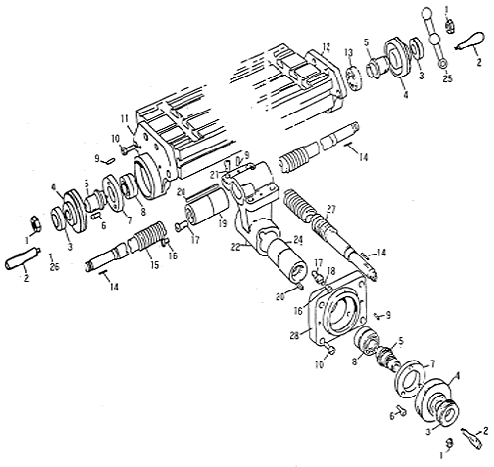

GROMAX Vertical Turret Milling Machine Spare Parts (D):

Model Descriptions

Price

D001 1/2"-20 NF Jam Nut $2.50
D002 Ball Crank Handle $6.25
D003 Dial Lock Nut $8.75
D004 Dial With 200 Graduation (inch) $18.75
D005 Dial Holder $20.00
D006 Hollow Head Cap Screw $0.63
D007 Bearing Retainer Ring $8.75
D008 Grease Sealed Ball Bearings $18.75
D009 f 6x30 Spring Pin $1.25
D010 3/8"x1" Hex Socket Head Cap Screw $1.25
D011 Left Bearing Bracket $37.50
D012 Right Bearing Bracket $37.50
D013 Ball Bearing 6204zz $1.25
D014 Key 3x3x20 $1.88
Model Descriptions

Price

D015 Longitudinal Feed Screw (inch) $218.75
D017 Lock Screw $0.63
D019 Longitudinal Feed Nut (inch) $45.00
D020 Key 5x5x20 $0.63
D021 Dial Holder $1.25
D022 Feed Nut Bracket Call
D023 M10x25 Hex Socket Head Cap Screw $45.00
D026 Ball Crank Handle $18.75
D027 Cross Feed Screw (inch) $150.00
D028 Cross Feed Bearing Bracket Call
D029 Cross Feed Screw Nut (inch) Call
C023 Table Call
D137 Screw Adjusting Nut Call
