EDM Fluid & Filter

Fluid

GSEF55/GSEF5  GREEN Synthetic EDM Fluid (55/5 Gal.)
RFEF55/RFEF30/RFEF5  Royal Flush Semi-Symthetic EDM Fluid (55/30/5 Gal.)

Filter

FLT-FT
/FLT-SUTE  GROMAX 5 Micron Filter   BUY ONLINE


H15/H26/H31/H34 Series  MANN EDM Filter



TOP

GREEN Synthetic EDM Fluid

The only EDM dielectric with chemical satellite electrodes and putting the GREEN in your machines.

Cut faster
Less electrode wear


IonoPlus« IME-MH

What Makes GREEN Different?
Features:
  • Faster finishing rates, a result of even spark distribution
  • Pure synthetic product eliminates frequent oil changes
  • Eliminates DC arcing & dead zones
  • Ends skin irritation
  • No hazardous ingredients - safe for environment and your skin
  • 99.99% odorless
  • Reduce electrode wear
  • Increase metal removal rate of 15%
  • Reduces electrode wear up to 30%
  • Improve surface quality
Model Description Price
GSEF55 55 Gal. Drum Call
GSEF5 5 Gal. Container Call
Shipping from east or west coast warehouse.
Please call for more details!


TOP

Royal Flush Semi-Synthetic EDM Fluid



Features:
  • Low viscosity with excellent non-clogging flow and backwash characteristics due to highly refined base stock
  • Superior resistance to ultraviolet light (will not discolor)
  • Much more stable fluid, higher flash point, pour point of -54░C
  • EPA tests on all components show non-sensitizing, non-toxic, and non-irritating
  • High dielectric strength
  • Non-detectable odor
  • 3~4 times the oxidation stability
IonoPlus vs. Royal Flush:
Model Description Price
RFEF55 55 Gal. Drum Call
RFEF30 30 Gal. Drum  Call
RFEF5 5 Gal. Pail Call

  IonoPlus Royal Flush
Appearance Fluorescent green Clear bright
Specific Gravity 0.79 g/ml 0.83 g/ml
Vapor Density 6.0 Lbs/gal 6.9 Lbs/gal
Flash Point (c.o.c.) 243░F 266░F
Pour Point -15░C -54░C


TOP

GROMAX 5 Micron Filter

5 Micron, pleated pater media, Buna grommet seal, service handle, wire mesh outer body

FLT-FT can be used for Easco, Sparcatron, Elox, Eltee, Gromax, Maximart, Sodick, Xermac FLT-SUTE can be used for Agie-Mondo Series, Charmilles Roboform Series, Chevalier, CHMR, Hansvedt, Pacific Controls, Santec/Sharp
Model         Price
FLT-FT        $35.00
Model         Price
FLT-SUTE    $35.00


TOP

MANN EDM Filter



Click for larger view.

Features:
  • MANN EDM Filters have a fibre-pack filling or a star-folded paper element

  • A large filtration surface is achieved by the special star-folding geometry

  • A highly efficient extraction and a large dirt-holding capacity ensure a long service life

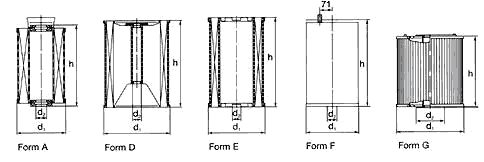

Model Form Filtering
Surface (cm2)
Dimen. (mm) Filter
Fineness (Ám)
Admission
(direction
of flow)
Manufacturer Matching

Price

d1 d2 h
H 15 135 n A 17,900 150 32* 252 10 outside in/
inside out
AEG $36.00
H 15 190 A 20,500 150 32* 364 10 AEG, Agema, Agie, Brother, Charmilles, Deckel, Hostek, Ingersoll-Hansen, Japax, Jiten, Multiform, Nassovia, Sinitron, Seibu-Walter, Zimmer+Kreim $45.00
H 15 190/6 A 27,500 150 32* 364 3-5   $50.00
H 15 190/14 A 27,500 150 32* 364 3-5 Charmilles $50.00
H 15 475 A 47,000 150 32* 364 3-5 Agie $55.00
H 34 1158/2 D 113,200 340 45.5 450 3-5 inside in/
outside out
Fanuc, Sodick $165.00
H 34 1158/3 D 113,200 340 45.5 450 3-5 Sodick $210.00
H 34 1158/4 D 145,000 340 45.5 450 3-5 Fanuc $235.00
H 31 967 E 95,300 302 29 507 3-5 Brother, Exeron, Mitsubishi, Nassovia $115.00
H 31 1033 F 99,125 302 54 503 3-5 Makino, Mitsubishi $170.00
H 31 1033/2 F 99,125 302 54 503 3-5 Hitachi $180.00
H 26 644/1 G 53,700 261 46 280 3-5 outside in/
inside out
Makino $90.00
*Outer diameter to DIN2391.
