Orbiting-Cut System

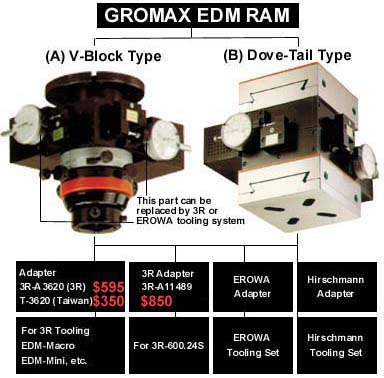

ORBIT15C+ORBIT15H/ORBIT50C+ORBIT50H GROMAX CNC Orbiting-Cut System

GROMAX CNC Orbiting-Cut System
  • Upgrade manual EDM up to 80% CNC functions

  • Reduce machining time 100% & electrode wear 30%

  • Improve surface finish 50%

Click for Basic Pattern Key and Operation Track

Specifications:
Model ORBIT15C+ORBIT15H
(controller+head)
Orbit head w/ max. of 33 Lbs. electrode work load
ORBIT50C+ORBIT50H
(controller+head)
Orbit head w/ max. of 110 Lbs. electrode work load
Max. Electrode Weight 33 Lbs. 110 Lbs.
Size (LxWxH) 7.87"x7.87"x8.66" 7.87"x7.87"x7.87"
Weight 30 Lbs. 60 Lbs.
X/Y Travel 0.2" 0.2"
Repeat Accuracy 0.0004" 0.0004"
Price Call for Pricing Call for Pricing
Computer Control Specifications:
Feature Membrane keyboard over 30 operation tracks Z-lock & LORAN mode control
Motion Direct Indicator Circle, square, hexagon "X" and "+" available
Power AC110V, 0.4KVA
Dimension Setting 0.0001"~0.3935"
Orbit Speed 0.0059"~0.0375"/sec. in 10 steps
Dimensions (WxDxH) 16.5"x13.8"x11.1"
Weight 42 Lbs.

Click for Basic Pattern Key and Operation Track

Cuts at 45 for corner sharpening Make it easy to engrave a T-type channel Preventing buildups of debris & deformation in boring a deep hole & big plane Hexagon machining Screw mold function Different sizes of cavity machining can be done using just one size of electrode
