GROMAX>Horizontal Turning Center>GA-200 Series


| 2-axis | 3-axis (c-axis live tooling) | 3-axis (sub-spindle/twin spindle) |
| 4-axis (c-axis+live tooling+sub/twin spindle) | 4-axis (twin spindle/turret) |
| 6-axis (twin spindle/turret+c-axis+live tooling) |

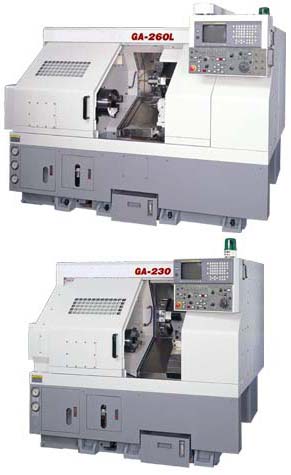

Horizontal Turning Center: GA-200 Series


GA-200 $59,900.00
GA-230 $60,900.00
GA-260 $62,900.00

Features:

  • 16.14"(410mm) Maximum Turning Diameter
  • 11.02"(280mm) Max. Turning Length Standard
  • 25.59"(650mm) Max. Turning Length On L Models
  • 10 Station Turret
  • 0.2 Seconds/Station 1 Step Turret Indexing
  • Fanuc 18-T 32 Bit High Speed Control
  • Fanuc Absolute AC Servo Drive Motors
  • 787 IMP Rapid Traverse On X-Axis
  • 787 IMP Rapid Traverse On Z-Axis (1181 Imp On L Models)
  • 30 Degree Slant Design
  • 6" Chuck: 60 To 6000 RPM Spindle Speeds
  • 8" Chuck: 42 To 4200 RPM Spindle Speeds
  • 10" Chuck: 35 To 3500 RPM Spindle Speeds
  • Large High Precision Linear Guide Ways On All Axes
  • Sub-spindle and C-axis With Live Tooling Available
  • Servo Driven Gantry Loader Available

GA-200 / 200L

  • 1.65"(42mm) Diameter Bar Capacity
  • Fanuc P-type AC 20 Peak HP Spindle Motor

GA-230 / 230L

  • 2.00"(52mm) Diameter Bar Capacity
  • Fanuc P-type AC 20 Peak HP Spindle Motor
GA-260 / 260L
  • 2.56"(65mm) Diameter Bar Capacity
  • Fanuc P-type AC 25 Peak HP Spindle Motor
Specifications:
MODEL
GA-200/200L
GA-230/230L
GA-260/260L
Max. swing
590mm(23.22")
Swing over saddle cover
440mm(17.32")
Max. turning dia.
410mm(16.14")
Max. turning length
280mm(11.02") / 650mm(25.59")
Chuck size
6"
8"
10"
Bar capacity
42mm(1.65")
52mm(2.05")
65mm(2.65")
Hole through spindle
55mm(2.17")
66mm(2.60")
76mm(2.99")
Bearing dia. of spindle
90mm(3.54")
100mm(3.94")
120mm(4.72")
Spindle speeds(rpm)
60~6000
42~4200
35~3500
Spindle nose to ASA
A2-5
A2-6
A2-8
Spindle drive motor
15 HP (30 min.)
20 HP (30 min.)
Feed motor X
1.0KW (1.4HP)
Feed motor Z
1.0KW (1.4HP) / 1.4KW (1.9HP)
Rapid traverse X
20m/min.(787ipm)
Rapid traverse Z
20m/min.(787ipm) / 30m/min.(1181ipm)
Slide travel X
237.5mm(9.35")
Slide travel Z
300mm(11.81") / 670mm(23.38")
Guide way
Linear
Standard Turret Head
10 ST.
Tool size square
25mm(1")
tool size round
40mm(1.5")
Power Turret total**Revoling
12ST.** 12 ST.
Tool size square
20mm(0.75")
Tool size round
32mm(1.26")
Revoling Tool
1~13mm(ER20)
Tail stock quill center
MT#4
Hydraulic tank
50 Liters
Coolant tank
110 Liters
N.W.
3000 / 4000Kg (6610 / 8810 lb)
NC control
FANUC18T
Note: The specifications are subject to change without notice
