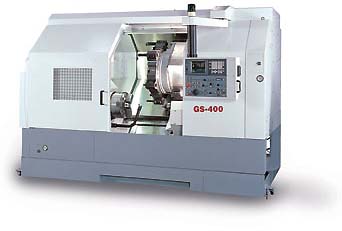

GS-400
$149,900.00
GS-460
$159,900.00
|
Combining
TREMENDOUS POWER, STRENGTH, and SPEED, the GS-400 series is
engineered for the ultimate turning power to accomplish today's
most demanding turning applications. The 45 degrees true slant
bed design, the massive servo indexing turret, and the enormous
power output of the 50HP 2 step precision spindle are just
a few of the many outstanding standard features on the GS-400
series.
Features:
- 24.01"
(610mm) Maximum Turning Diameter
- 38.18"
(970mm) Maximum Turning Length
- 4.52"
(115mm) Bar Capacity
- 15"
or 18" Chucks
- Fanuc
Oi 32-bit High-speed Control
- 12-Station
Servo Indexing Turret With 0.5 sec. Indexing
- 45
Degrees True Slant Bed
- Widely
Spaced Ground And Harden Box Ways On All Axes
- 787IPM
(20 m/min.) X-axis & 944IPM (24 m/min.) Z-axis Rapid
Traverse
- 50
Horse Power AC Spindle Motor With 2-Step Super Heavy-Duty
Transmission
- 1510
Foot-pounds (2048 N-M) Of Spindle Torque Output
- Live
Tooling & C-axis Available
|
