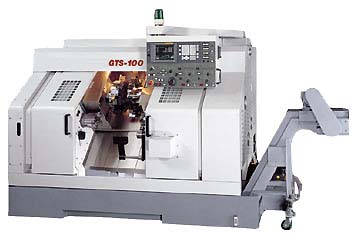

Horizontal Turning Center: GTS-150

GTS-150
$Call

Designed for simultaneous turning of two work pieces within one machine setup. The GAS series incorporates twin-opposing spindles and turrets with Coaxes and live tooling capabilities. This configuration allows both turrets to work simultaneously with one turret at each spindle achieving ultimate efficiency.



Specifications:
Models
GTS-150
GTS-150X
Max. Turning Diameter
7.08" (180mm)
Max. Turning Length
7.08" (180mm)
Max. Swing Over Cover
7.08" (180mm)
Spindles
Head1
Head2
Head1
Head2
Bar Capacity
1.65" (42mm)
Spindle Speed Range
60~6000RPM
Spindle Drive System
Direct Drive1:1 Pulleys
Spindle Motor
15 Peak HP
Hole Through Spindle
2.00" (51mm)
Spindle Bearing Diameter
2.95" (75mm)
Spindle Nose
A2-5
Head 2 Slide Travel
19.68" (500mm)
Turrets
GTS-150 = 12 Station / GTS-150X = 12 Station X 2
Turret Index Time
0.2 Sec./Pos.
Live Tooling Stations*
6 Station
Live Tooling Drive Motor*
5 HP AC (2.2/3.7Kw)
Live tooling RPM
Axial 4500rpm
Radial 6000rpm
X1/X2 Rapid Traverse Rate
6.10" (155mm)
Z1 Max. Slide Travel
7.09" (180mm)
Z2 Max. Slide Travel
7.78" (200mm)
X1/X2 Rapid Traverse Rate
590IPM (15m/min.)
Z1/Z2 Rapid Traverse Rate
1,417IPM (36m/min.)
X-Axes Servo Drive Motors
1.4 HP AC Absolute (1.0Kw)
Z-Axes Servo Drive Motors
1.8 HP AC Absolute (1.4Kw)
Slide Way Type(All Axes)
Linear
Tool Size Square
3/4" (20mm)
Tool Size Round
1" Diameter (25mm Diameter)
Live Tooling Shaft Diameter*
0.51" (13mm/ER 20)
Part Catcher Capacity* D X L
1.65 x 5.11" (42 x 130mm)
CNC Control
Fanuc 18-T / Siemens 840D *
Voltage
AC 200/220 + 10% to 15% 3 Phase
Hydraulic Tank Capacity
13 Gal. (50L)
Coolant Tank Capacity
37 Gal. (140L)
Coolant Pumps
3/4 HP Grundfos Ch-2/30 rated at 55 PSI (X models x 2)
Machine Dimensions LxWxH
97" x 67" x 71" (3410 x 1700 x 1805 mm)
Approximate Machine Weight
10,780 Lbs. (4,900Kg) / 12,100 Lbs. (5500Kg)
*Optional
Note: The specifications are subject to change without notice
