Index Table

HAP-180/250/380/600 GROMAX Tilting Table
HAP-180S/250S/380S GROMAX Tilting Table with Swivel Base

HHV-150/200/250/300/350 GROMAX Horizontal & Vertical Rotary Table
CS-8 GROMAX Super Index Spacer
HIP300/450/600 GROMAX Precision Index Table
HUT300 GROMAX Universal Tilting Rotary Table



TOP

GROMAX Tilting Table


 Features:

  • Worm and crank handle for easy adjustment.
  • Low profile design.
  • Adjustable 45 degrees both right and left
  • Angle markings are accurate and easy to read
  • Swivel base available

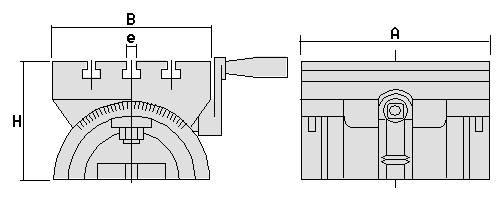

Specifications:
Model
B
A
H
T-SLOT
Weight
Price
e
HAP-180
5.1"
7.1"
3.6"
0.4"
16.5 Lbs.
HAP-250
7.0"
9.8"
5.2"
0.5"
49.5 Lbs.
HAP-380
10.2"
15.0"
7.3"
0.6"
151.8 Lbs.
HAP-600
12.2"
23.6"
8.1"
0.7"
290.4 Lbs.


TOP

GROMAX Tilting Table with Swivel Base


 Features:

  • Worm and crank handle for easy adjustment
  • Low profile design
  • Adjustable 45 degrees both right and left
  • Angle markings are accurate and easy to read
  • Swivel Base attached

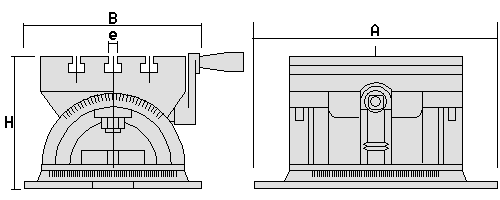

Specifications:
MODEL
B
A
H
T-SLOT
Weight
Price
e
HAP-180S
8.7"
10.4"
5.3"
0.4"
26.4 Lbs.
HAP-250S
12.0"
13.8"
7.3"
0.5"
88.0 Lbs.
HAP-380S
17.2"
19.3"
9.5"
0.6"
220.0 Lbs.


TOP

GROMAX Horizontal & Vertical Rotary Table


HHV Series

Click for larger view.

Max. Variation Inch
Flatness Of Clamping Surface (concave)  0.0006
True Running of Cylindrical Center Bore 0.0008
True Running of Tapered Center Bore 0.0008
Parallelism Of Clamping Surface To Base 0.0008
Specifications:
Model HHV-150
6"
HHV-200
8"
HHV-250
10"
HHV-300
12"
HHV-350
14"
Center Hole MT-2 MT-3 MT-3 MT-4 MT-4
Weight 36 Lbs. 77 Lbs. 117 Lbs. 180 Lbs. 225 Lbs.
Price Click for Price Click for Price Click for Price Click for Price Click for Price


TOP

GROMAX Super Index Spacer


CS-8
180 Lbs.

Click for larger view.
Click for Price

Features:

  • The super index spacer can be used as a dividing header or a rotary table
  • It has the feature of milling, drilling, jig boring & many other common machine shop applications
Standard Accessories:
  •  8" 3-Jaw chuck
  •  6 Division Masking Plates
    (2,3,4,6,8,12)
  • 10" Face Plate
Optional Accessories:



Specifications:
Chuck Capacity 8"
Indexing Accuracy 25 sec.
Squareness (base to chuck) 0.0008" (max.)
Parallelism over Face 0.0006" (max.)
Concentricity of Mounting Flange 0.0008" T.I.R.
Concentricity of Chuck 0.0005" T.I.R.


TOP

GROMAX Precision Index Table


HIP300
HIP450
HIP600

Click for larger view.

Features:

  • Manual rotation is easy when heavy loads are applied
  • The air cylinder between the connecting faces avoids all sliding friction
  • The mobility of the table, floating positively on the air cylinder, excludes all tangential pull and allows the highest accuracy
  • Rigid body for heavy cutting strong locking can sustain the force of thrust for heavy cutting
  • FC-35 cast iron
Standard Accessories:
  • A quick coupler for connection to the air supply network
  • A three meter length rubber pipe, complete with couplings to connect the air filter unit to the index table
  • 4 pieces clamping blocks
Specifications:
Model HIP300 HIP450 HIP600
LxW 12"x12" 18"x18" 24"x24"
Height 51/8" 6" 77/8"
Spindle Hole 1" 11/4" 11/2"
T-Slot 9/16" 11/6" 3/4"
Driving (longitudinal/revolving) manual, air pressure 5~8kg/cm2
Max. Load Weight 2645 Lbs. 5921 Lbs. 7496 Lbs.
Allowable Load Weight 1102 Lbs. 2205 Lbs. 4409 Lbs.
Number of Division Divisions of 24
2, 3, 4, 6, 8, 12
Divisors of 72 and dividing by integer of 5
Table Rotation Clockwise and counter-clockwise
Division (sec.) Divide into 24 or 72 equal parts 3
Weight 198 Lbs. 441 Lbs. 882 Lbs.
Price Call for Pricing Call for Pricing Call for Pricing


TOP

GROMAX Universal Tilting Rotary Table


HUT300
204 Lbs.

Click for larger view.
Click for Price

Features:

  • Extra deep coolant channel
  • 10 second vernier reading, 2 minute tilt reading
  • Satin chrome dials
  • Super low profile
  • Heavy duty construction
  • Hardened and ground worm gear
Specifications:
Table Diameter 12"
Table Height (horizontal x vertical) 7.25"x14.57"
Center Hole/Height (vertical) MT5/8.19"
Parallelism over Face 0.0006" (max.)
Concentricity of Mounting Flange 0.0008" T.I.R.
Concentricity of Chuck 0.0005" T.I.R.
