Vise

HPV-5/7 GROMAX Pneumatic Vise
HPAC-130S/130/160/200 GROMAX CNC Multi-Power Fixed Super Lock Vise
1404/1606 CNC 4" & 6" QUAD-I Vise
HAV-4/HAV-6(T/C)/HAV-6.5/HAV-8/HAV-12
GROMAX Precision Super Lock Vise
AK70/AK140 Multi-Purpose Fixture Vise
DL44/DL64 Precision Double Clamping Vise
HMC-6/HMC-8 GROMAX 6" & 8" NC Machine Vise
HH100/HH150/HH200 GROMAX Hydraulic Machine Vise



TOP

GROMAX Pneumatic Vise



Click for larger view.

HPV-5 Click for Price
HPV-7
Click for Price

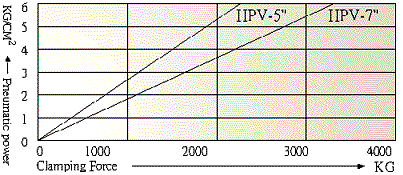

PNEUMATIC POWER SOURCE
82.5 LB/INCH
² ( 6KG/CM²)

 Features:

  • Quick operation.
  • Stable and rigid design.
  • Extremely high clamping force.
  • High accuracy and repeatability.
  • Reduces production costs.

  1. This vice can be operated both manually and pneumatically. The pneumatic power enables rapid strong clamping of the workpeice which significantly improves productivity.
  2. Super Lock Mechanism ensures jaws are parallel during clamping and eliminates deformation ensuring firm and accurate work holding.
  3. Design is compact and very simple to operate requiring almost no maintenance.
  4. The combination of Pneumatic over Hydraulic Power provides both high speed and extremely high clamping force.
  5. These vices are supplied with a mechanical push button valve as standard. A Solenoid Valve is also available for use in automated or unmanned production situations.

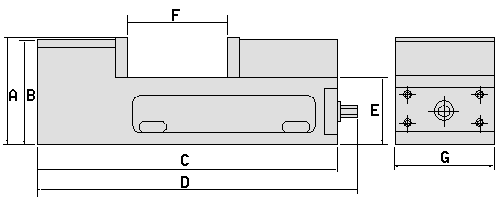

Specifications: (Hardness HRC 45°)
Model
A
B
C
D
E
F
G
Weight
Price
HPV-5
6.3"
6.5"
19.0"
20.4"
3.3"
6.3"
5.3"
92.4 Lbs.
HPV-7
7.1"
7.3"
22.6"
24.0"
4.5"
7.1"
7.0"
182.6 Lbs.


TOP

GROMAX CNC Multi-Power Fixed Super Lockgle Vise

Features:

  1. The patented Multi-Power System built of HIGH GRADE BEARING STEEL doubles the clamping force. Adjustable clamping force of 0~13200 Lbs. Includes Steps for more clamping space.
  2. Slide ways are HARDENED to HRC50° to increase durability and maintain positioning height over long use.
  3. Body is made of Ductile iron above FCD60 grade for high precision and durability. One solid body design enables high rigidity with a force of 11000 Lbs. and the shape will deflect less than 0.01mm (0.0004")
  4. SUPER LOCK SYSTEM automatically pulls the workpiece down to accurate position and most suitable for precision mold making on machining centers.
  5. Can be mounted horizontally or vertically.



Fixed Height makes several vises can be used together.
This product is especially for High Speed CNC Machining Center.



Standard Accessories:

  • 2pcs of alignment wedge
  • 4pcs of clamp

Optional Accessories:

  • Cross-grooved jaws
  • V jaws
  • Combination jaws
  • Step jaws
Cross-Groved Jaws
V Jaws
Combination Jaws
Step Jaws

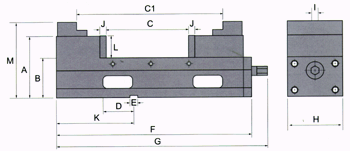

Specifications: (Material FCD60 Ductile Iron. Hardness HRC 50°)

Model
A
B
C
C1
D
E
F
G
Price
HPAC-130S
5.8"
3.7"±0.0004"
0~7.5"
6.1~13.4"
3.0"±0.0008"
0.7"
18.2"
19.7"

Model
Max. clamping Force
H
I
J
K
L
M
Weight
HPAC-130S
13200 LBF
5.2"
0.7"
0.6"
7.0"
2.2"
7.1"
102.3 Lbs.



HPAC-130/160/200

Click for larger view.

Extremely high accuracy and repeatability.
Adjustable clamping force of 0~17600 Lbs.

Features:

  1. One-Piece Construction provides high rigidity and super precision.
  2. Heat Treated Slideways.
  3. Super Lock System holds Jaw down on slideways and prevents Jaw deformation.
  4. The vise has 4 reference-surfaces for mounting horizontally sideways or vertically.
  5. The patented Multi-Power System built of HIGH GRADE BEARING STEEL provides extremely high clamping pressure. The pressure is more consistent and eliminates all leakage and maintenance problems associated with hydraulic vises.


Fixed Height makes several vises can be used together.
This product is suitable for multi-unit applications on both horizontal and vertical CNC Machining Centers as well as Conventional Milling Machines where heavy duty machining requires a very high clamping force.



Standard Accessories:

  • 2pcs of alignment wedge
  • 4pcs of clamp

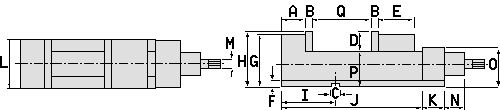

Specifications: (Material FCD60 Ductile Iron. Hardness HRC 50°)



Dimensions for 4-Jaw Pate Positions
Model
A
B
C
D
E
F
G
H
I
J
K
L
Price
HPAC-130
2.8"
0.6"
0.7"
2.2"
4.5"
0.9"
5.8"
5.9"
5.9"
15.9"
2.6"
5.2"
HPAC-160
3.3"
0.6"
0.7"
2.3"
5.1"
0.9"
6.3"
6.4"
6.5"
19.5"
2.6"
6.3"
HPAC-200
3.5"
0.6"
0.7"
2.5"
5.9"
0.9"
6.7"
6.8"
7.5"
22.4"
2.6"
8.3"

Model
Max. clamping Force
M
N
O
P
Q
Q1
Q2
Q3
Weight
(Lbs)
HPAC-130
13200 LBF
0.8"
2.5"
4.1"
3.9"±0.0004"
0~7.1"
7.1"~9.4"
7.1"~11.4"
7.1"~15.0"
103.4
HPAC-160
14300 LBF
0.8"
2.5"
4.6"
4.0"±0.0004"
0~9.4"
9.4"~12.6"
9.4"~14.2"
9.4"~18.5"
143
HPAC-200
17600 LBF
0.8"
2.5"
4.8"
4.3"±0.0004"
0~11.0"
11.0"~14.2"
11.0"~16.5"
11.0"~21.3"
209


TOP

CNC 4" & 6" QUAD-I Vise

Improves all workholding operations on today's high-precision/high production CNC machines and manual equipment

QUAD-I:
The QUAD-I fixed jaw is located in the front, providing first quadrant programming. The feature makes all dimensions X plus (+) and Y(+), enable CNC programmers to produce programs quickly without subtracting figures


Click for larger view.
1404 20 Lbs. (Discontinued)
1606
70 Lbs. (Discontinued)

Compare QUAD-I's Exacting Standards to Conventional Vises:

  • Manufactured with proven pull-down type moving jaw
  • Manufactured of high quality tool steel to assure minimum deflection in body and jaws
  • All sides are flat and parallel, and perpendicular to .001" assuring tolerances needed for precision CNC and manual equipment
Specifications:
Model A B C D E F G H I J K
1404 4" Vise 13/32" 39/64" 4" 13/8" 23/16" 97/8" 33/16" 33/8" 4" 43/16" 83/8"
1606 6" Vise 17/32" 7/8" 6" 21/4" 31/8" 16" 45/8" 5" 61/4" 61/8" 131/2"


TOP

GROMAX Precision Super Lock Vise


HAV Series

Click for larger view.

Features:

  • Coolant through
  • Enclosed lead screw
  • Removable hinged handle for fast locking
  • Provides better clamping pressure
  • Eliminates Hammering
  • Material is highest quality ductile iron 80,000 psi, flame hardened bed, standard swivel base, hardened and ground jaw plates, screws hardened and threads ground
  • 1 lb. of force horizontally, 1/2 lb. of force vertically pushes jaw downward
Specifications:
Model (Taiwan) HAV-4 HAV-6T HAV-6.5 HAV-8 HAV-12
(China) - HAV-6C - - -
Jaw Opening 4-3/16" 5-1/2" 8" * 8-5/16" 13-3/8"
Jaw Width 4-1/16" 6" 6" 8" 12-1/2"
Jaw Depth 1-1/4" 1-1/2" 1-1/2" 2" 5-1/4"
Overall Length 13" 8-1/4" 8-1/4" 11" 27-1/2"
Weight 46.3 Lbs. 138 Lbs. 150 Lbs. 195 Lbs. 320 Lbs.
Price (Taiwan) Click for Price Click for Price Click for Price Click for Price Click for Price
(China) - Click for Price - - -
*HAV-6.5 has 8" bigger jaw opening than HAV-6 with the same jaw width, depth, and overall length.


TOP

Multi-Purpose Fixture Vise


AK70/AK140

Click for larger view.

Features:

  • Holds odd shapes workpiece;
  • Positive 3-point gripping jaws adjusts jaws position according to the shaped of workpiece



Specifications:
Model AK70 AK140
Jaw Opening 3" 6"
Jaw Width 2.76" 5.51"
Overall Length 14.7" 25.1"
Overall Height 3.27" 5"
Weight 20 Lbs. 80 Lbs.
Price Click for Price Click for Price


TOP

Precision Double Clamping Vise



Click for larger view.
DL44 44 Lbs. Click for Price
DL64 101 Lbs. Click for Price

Features:

  • GROMAX Twin vise offer 2 clamping stations, 6"x4" model
  • Ideal for jobs where it is necessary to maximize the number of parts in the work envelop and increase the number of machining sequences in a single setup
  • 0.0002" repeatable clamping accuracy
In case of different sizes for two work-pieces, the clamping operation can still be performed when the length difference is less than 2.76". Once the center stationery jaw is removed, this vise become a center clamping super lock vise. This vise can be change into a super open vise by removing the center stationery jaw and then fixing the rear movable jaws.




Specifications:
Model A B C D E F G H Wt. Price
DL44 15-5/8" 3-3/8" 3" 1-1/4" 3-11/16" 4" 7-7/8" 3-15/16" 44 Lb. Click for Price
DL64 20-1/2" 4" 3-15/16" 1-3/4" 4-7/8" 6" 10-9/16" 5-15/16" 101 Lb. Click for Price


TOP

GROMAX 6" NC Machine Base




Click for larger view.
HMC-6 68 Lbs. Click for Price
HMC-8
172 Lbs. Click for Price

Features:

  • Flatness of all sides to .001" guaranteed modes, upright, left and right side
  • Up to 15,000 lbs. clamping force
Specifications:
Model Jaw Width Total Height Max. Opening Overall Length Weight Price
HMC-6 6" 4.45" 6-1/4" 171/2" 68 Lbs. Click for Price
HMC-8 8" 7.68" 8-1/4" 23-5/8" 172 Lbs. Click for Price
Second Generation Super-Lock Vise. NC style allows side by side mounting. Jaw can't lift, work piece can't tilt.


TOP

GROMAX Hydraulic Machine Vise


HH Series

Click for larger view.

Features:

  • High tensile strength cast iron body
  • Hardened and ground slide way
  • Alloy steel jaws hardened and ground
  • Adjustable clamping force
  • Spring-disc cylinder absorbs vibration in cutting process
  • Enable rigid clamping
Specifications:
Model HH100 HH150 HH200
Jaw Width 3.94" 5.91" 7.87"
Jaw Height 1.42" 2.00" 2.44"
Jaw Opening 6.69" 11.81" 11.81"
Total Length 16.93" 24.42" 27.56"
Total Height 3.70" 5.24" 6.30"
Weight 60 Lbs. 175 Lbs. 265 Lbs.
Price Click for Price Click for Price Click for Price
