KANETEC Magbore Mini Drill Guide (Model KCD-MN1)

Handy Type for Small Drill

Features:
  • Weighs less than 13 Lbs. (without drill), and approximately 19 Lbs. with drill for easily operation
  • The compact design allows for use in areas of restricted accessibility
  • Attached firmly even to thin plates of  0.2" thickness to assure high precision drilling work
  • The drill clamping bracket is designed for use with MILWAUKEE Electric Magnum Hole Shooter* series electric drills
    (Please note: use of other makes of drill motors will require customer's retro-fit for proper fit to the clamping bracket.)

KCD-MN1
 12.1 Lbs.

Call for Pricing
(Drill not included)


Model KCD-MN1
Power Requirement (single phase) AC110-120V
Magnet Dimensions 4" dia. X 2-3/8" high
Overall Size (without drill) 9" width
9.5" lowered height
11.75" extended height
Holding Power of Magnet 770 Lb (measured on 1" thick mild steel)
Maximum Stroke 3.9"

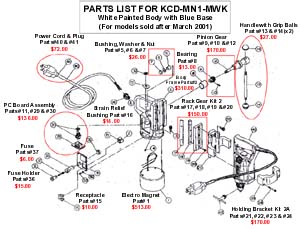

Parts List for KCD-MN1 (new model):
White Painted Body with Blue Base
(For models sold after March 2001)
Parts List for KCD-MN ("red" model):
Red Painted Body with Black Base
(For models sold til March 2001)
*Drills are not included with the MAGBORE, but can be purchased separately from your local dealer/distributor. Compatible MILWAUKEE Electric Magnum Hole Shooter models are:
Model
Capacity
Type
Note
0234-1
1/2"
Keyed
 Heavy duty keyed chuck
0234-6
1/2"
Keyed
 Heavy duty keyed chuck
0244-1
1/2"
Keyed
 Heavy duty keyed chuck
0235-20
1/2"
Keyless
 Single sleeve keyless chuck
0235-21
1/2"
Keyless
 Single sleeve keyless chuck
0235-6
1/2"
Keyless
 All metal keyless chuck
0233-20
3/8"
Keyless
 Standard keyless chuck
0232-20
3/8"
Keyed
 Heavy duty keyed chuck
0224-1
3/8"
Keyed
 Heavy duty keyed chuck
0233-21
3/8"
Keyless
 All metal keyless chuck
0124-1
1/4"
Keyed
 Heavy duty keyed chuck


TOP
KANETEC Magbore with V-Bottom Base (Model KCD-MN-C1/V1)

Models now available with a V-BOTTOM magnetic or chain grip for use on round pipe!

KCD-MN-C1

Click for larger view.
Call for Pricing
 V bottom with chain clamping system for non-ferrous drilling work. Non-magnetic type for ferrous or non-ferrous work.
KCD-MN-V1

Click for larger view.
Call for Pricing
 V bottom with magnetic base for ferrous drilling work. Strong maximum holding of 330 LBF. For ferrous work only.
Features:
  • For drill work on pipe and rounds from 3.9" to 8" diameter.
  • Designed for aluminum, plastic, wood and most all other non-ferrous and ferrous materials.
  • 2 new models both with V-bottom base for round work.
  • Both models are designed for use with the MILWAUKEE Electric Magnum Hole Shooters. Compatible models are:
    • 0234-1
    • 0234-6
    • 0244-1
    • 0124-1
    • 0232-20
    • 0224-1


TOP
KANETEC Magbore Drill Guide (Model KCD-N)

Features:
  • Circular magnet is turnable up to 320°, even can drill thin steel sheet by placing material beneath the sheet
  • 16.4 ft. cord length
  • Model KCD-1NA: Portable type for bench drill; capable of drilling a ø0.8" (20mm) hole by using the metal fixture for Model KCD-2N
  • Model KCD-2NA/3NA: Standard type featuring easy operation and high safety with a wide range of applicable drills

KCD-1NA
33 Lbs.

Click for larger view.
Call for Pricing

KCD-2NA
41.8 Lbs.

Click for larger view.
Call for Pricing



Model

 KCD-1NA KCD-2NA KCD-3NA
Applied Drill 0.39"~0.51" 0.51"~0.98" 0.98"~1.26"
Drill Dia. 0.06"~0.51" 0.12"~0.98" 0.12"~1.26"
Voltage Single-phase AC110V Single-phase AC110V 2P-AC220V
Power 34W 102W 110W
Capable Drilling Force 880 Lb 1232 Lb 1232 Lb
Holding Power 1760 Lb 3410 Lb 3410 Lb
Magnet Dimension ø5.59"x2.76" ø6.54"x2.28" ø6.54"x2.28"
Height 13.98" 20" 20"
Max. Stroke 5.51" 9.45" 9.45"
Turning Angle 320° 320° 320°
Fine Length 1.18" 1.25" 1.25"
Weight 33 Lb 41.8 Lb 41.8 Lb
Price Click for Price Click for Price Click for Price


TOP
KANETEC Magbore Drill Guide (Model KCD-HU)

Standard Type for Shape Steel and Thin Steel Plate

Features:
  • Magnet improvement increases magnetic force 20~80% higher than types KCD-H and KCD-N
  • Excellent attraction is ensured for thin steel plate
  • Most suitable for drilling shaped steel and thin steel plates
  • Economical standard type in compact design

KCD-1H
26.4 Lbs.

Click for larger view.
Call for Pricing

KCD-2HA
41.8 Lbs.

Click for larger view.
Call for Pricing

Model

 KCD-1H KCD-2HA KCD-3HA
Applied Drill 0.39"~0.51" 0.51"~0.98" 0.98"~1.26"
Drill Dia. 0.06"~0.51" 0.12"~0.98" 0.12"~1.26"
Voltage Single-phase AC110V Single-phase AC110V 3P-AC220V
Power 41W 135W 150W
Capable Drilling Force 924 Lb 1386 Lb 1386 Lb
Holding Power 1870 Lb 3300 Lb 3300 Lb
Magnet Dimension 3.94"X6.30"X2.36" 4.33"X9.06"X2.09" 4.33"X9.06"X2.09"
Height 13.98" 20" 20"
Max. Stroke 5.51" 9.45" 9.45"
Turning Angle -- 70° 70°
Fine Length -- 1.18" 1.18"
Weight 26.4 Lb 41.8 Lb 41.8 Lb
Price Click for Price Click for Price Click for Price


TOP
KANETEC Mini Permanent Magnetic Chuck (Model MMZ)

Mini Permanent Magnetic Chuck
Model Holding Power Pole Pitch Height Price
MMZ-411
231 LBF
7.5 (1.5+6)
1.4"
Call for Pricing
MMZ-512
55 LBF
10 (2+8)
2"
Call for Pricing
MMZ-712
132 LBF
10 (2+8)
2.8"
Call for Pricing


TOP
KANETEC Mini Permanent Circular Magnetic Chuck (Model MMC)

Mini Permanent Circular Magnetic Chuck
Model Holding Power Pole Pitch Height Price
MMC-5
18.7 LBF
9.5 (1.5+8)
2"
Call for Pricing
MMC-8
110 LBF
10 (2+8)
2.6"
Call for Pricing


TOP
KANETEC 3-Face Mini Permanent Magnetic Chuck (Model MMW-3F)

3-Face Mini Permanent Magnetic Chuck
Model Nominal Dim. Holding Power Pole Pitch Price
MMW-3F50A
2.2"X4.6"
132 LBF

1.5 (0.5+1.0)
Call for Pricing
MMW-3F70A
2.8"X4.6"
220 LBF
1.5 (0.5+1.0)
Call for Pricing


TOP
KANETEC Square Type Magnetic Block (Model KYA)

Square Magnetic Block
Model Nominal Dim. Holding Power Price
KYA-8
3"X3"X3"
44 LBF
Call for Pricing
KYA-13
5"X5"X5"
77 LBF
Call for Pricing
KYA-18
7"X7"X7"
121 LBF
Call for Pricing


TOP
KANETEC Square Type Magnetic Block (Model KYB)

Square Magnetic Block
Model Nominal Dim. Holding Power Price
KYB-8
3"X3"X3"
40 LBF
Call for Pricing
KYB-13
5"X5"X5"
88 LBF
Call for Pricing
KYB-18
7"X7"X7"
132 LBF
Call for Pricing


TOP
KANETEC Magnetic V-Holder (Model KVA)

Magnetic V-Holder
Model Nominal Dim. Holding Power Price
KVA-1
2.3"X2.8"X3"
66 LBF Minimum
Call for Pricing
KVA-2
2.3"X2.8"X5"
99 LBF Minimum
Call for Pricing
KVA-3
2.3"X2.8"X7"
154 LBF Minimum
Call for Pricing


TOP
KANETEC Magnetic V-Block Set (Model KMV)


Magnetic V-Block Set of Two
Model Nominal Dim. Holding Power Price
KMV-50C
2"X3"X2"
33 LBF
Call for Pricing
KMV-80C
2"X4"X2"
44 LBF
Call for Pricing
KMV-125C
2"X6"X4"
51 LBF
Call for Pricing


TOP
KANETEC Permanent Magnetic Block Set (Model KPB)

Double Face Permanent Magnetic Block Set of Two
Model Nominal Dim. Holding Power Price
KPB-2F15B
2"X6"X2"
66 LBF
Call for Pricing
KPB-2F20B
2"X8"X2"
88 LBF
Call for Pricing
KPB-2F30B
2"X12"X2"
132 LBF
Call for Pricing


TOP
KANETEC Magpad (Model MP)

Magnetic Pad for Wire EDM
Model Nominal Dim. Holding Power Price
MP-1
3"X1"X0.35"
17.6 LBF
Call for Pricing
MP-2
3"X2"X0.35"
44 LBF
Call for Pricing
MP-3
3"X3"X0.35"
55 LBF
Call for Pricing



TOP
KANETEC Electro Magnetic Holder (Model KE-B)

Electromagnetic Holder
Model Dimensions Holding Power Price
KE-1B
ø0.4"X1.2"
0.66 LBF
Call for Pricing
KE-2B
ø0.8"X1.6"
6.16 LBF
Call for Pricing
KE-3B
ø1.2"X1.6"
39.6 LBF
Call for Pricing

KE-4B
ø1.6"X1.6"
88 LBF
Call for Pricing
KE-5B
ø2.0"X2.0"
132 LBF
Call for Pricing
KE-6B
ø2.4"X2.4"
242 LBF
Call for Pricing
KE-7B
ø2.8"X2.4"
330 LBF
Call for Pricing
KE-8B
ø3.1"X2.4"
440 LBF
Call for Pricing
KE-9B
ø3.5"X2.4"
726 LBF
Call for Pricing


TOP
KANETEC Thin-Type Electro Magnetic Holder (Model KE-D/E)

Thin-Type Electromagnetic Holder
Model Dimensions Holding Power Price
KE-2D
ø0.8"X1.0"
4 LBF
Call for Pricing
KE-3E
ø1.2"X1.0"
18 LBF
Call for Pricing
KE-4E
ø1.6"X1.0"
49 LBF
Call for Pricing


TOP
KANETEC Hybrid Magnetic Holder (Model KE-H)

Hybrid Magnetic Holder
Model Dimensions Holding Power Price
KE-2H
ø1.8"X1.0"
11 LBF
Call for Pricing
KE-3H
ø1.2"X1.6"
44 LBF
Call for Pricing
KE-4H
ø1.6"X1.6"
77 LBF
Call for Pricing
KE-5H
ø2.0"X2.0"
121 LBF
Call for Pricing
KE-6H
ø2.4"X2.4"
176 LBF
Call for Pricing
KE-8H
ø3.1"X2.4"
330 LBF
Call for Pricing


TOP
KANETEC Automatic Release-Type Magnetic Holder (Model KE-R)

Automatic Release Electromagnetic Holder
Model Dimensions Holding Power Price
KE-2R
ø0.8"X1.0"
1 LBF
Call for Pricing
KE-3RA
ø1.2"X1.0"
7 LBF
Call for Pricing
KE-4RA
ø1.6"X1.0"
24 LBF
Call for Pricing


TOP
KANETEC Electro-Permanent Magnetic Holder (Model KEP)


Electro Permanent Magnetic Holder


Model Dimensions Holding Power Price
KEP-3C
ø1.2"X1.6"
33 LBF
Call for Pricing
KEP-4C
ø1.6"X1.6"
55 LBF
Call for Pricing
KEP-5C
ø2.0"X2.0"
77 LBF
Call for Pricing
KEP-7C
ø2.8"X2.4"
198 LBF
Call for Pricing
KEP-9C
ø3.5"X2.4"
330 LBF
Call for Pricing


TOP
KANETEC Permanent Magnetic Holder (Model KM)

OD "h" TOLERANCE

Permanent Magnetic Holder

Height Tolerance: 0-0.1
h: 0.27"
Model Dimensions (ODXH) Holding Power Price
KM-0005
ø0.2"X0.3"
0.07 LBF
Call for Pricing
KM-0007
ø0.3"X0.3"
0.18 LBF
Call for Pricing
TOP NICKEL PLATING
KM-0005L KM-0007L KM-001 KM-T001 KM-0015

KM-T0015 KM-0018H KM-002 KM-0025H
Model Dimensions (ODXH) Holding Power Price
KM-0005L
ø0.2"X0.5"
0.4 LBF
Call for Pricing
KM-0007L
ø0.3"X0.5"
0.88 LBF
Call for Pricing
KM-0010H
ø0.4"X0.3"
0.66 LBF
Call for Pricing
KM-001
ø0.4"X0.6"
1.76 LBF
Call for Pricing
KM-T001 (tapped)
ø0.4"X0.7"
1.76 LBF
Call for Pricing
KM-0015
ø0.6"X0.6"
4.4 LBF
Call for Pricing
KM-T0015 (tapped)
ø0.6"X0.7"
4.4 LBF
Call for Pricing
KM-0018H
ø0.7"X0.3"
11 LBF
Call for Pricing
KM-002
ø0.8"X0.6"
8.8 LBF
Call for Pricing
KM-T002 (tapped)
ø0.8"X0.7"
8.8 LBF
Call for Pricing
KM-0025H
ø1.0"X0.4"
19.8 LBF
Call for Pricing
TOP TAPPED PLATING
KM-025C KM-04C KM-05C KM-025S KM-06S
Model Dimensions (ODXH) Holding Power Price
KM-025C
ø1.0"X1.0"
22 LBF
Call for Pricing
KM-03C
ø1.2"X1.0"
33 LBF
Call for Pricing
KM-04C
ø1.6"X1.2"
66 LBF
Call for Pricing
KM-05C
ø2.0"X1.6"
110 LBF
Call for Pricing
KM-025S
1.0"X1.0"X1.0"
22 LBF
Call for Pricing
KM-06S
1.0"X2.4"X1.0"
44 LBF
Call for Pricing
TOP PERIPHERAL KNURLING
Model Dimensions (ODXH) Holding Power Price
KM-0010J
ø0.4"X0.3"
0.66 LBF
Call for Pricing
KM-0018J
ø0.7"X0.3"
11 LBF
Call for Pricing
KM-0025J
ø1.0"X0.4"
19.8 LBF
Call for Pricing


TOP
KANETEC Hand Lifma (Model HL)

Features:
  • Suited for pulling/dragging steel material or steels, and carrying work, metal molds, press die, etc.
  •  A new cam mechanism, used to break contact and release, will not scratch the work surface

HL-20A

Click for larger view.
Call for Pricing

Model HL-20A
Max. Holding Power 110 LBF (lateral pulling)
440 LBF (lifting up)
Dimensions (LxWxH) 5.51"x3.94"x1.26"
Handle Length 7.87"
Weight 5.5 Lbs.


TOP
KANETEC Hand Magnet (Model HMB)

Features:
  • Used in a wide range of fields: Machining, casting, food chemical processing, etc.
  • Most suitable for collecting/ removing iron pieces mixed in the medium or on floor surfaces, material handling, and holding work while buffing or other types of operations

HMB-7

Click for larger view.
Call for Pricing

Model HMB-7
Holding Power 55 LBF
Weight 4.2 Lbs.


TOP
KANETEC Maghand (Model HMC)

Features:
  • Used to pick up small steel parts, nut/bolts, nails, scrapes, for removal or material handling.
  • Easy to squeeze T handle releases material. Maximum batch of material which can be picked up at one time from 4~9 Lbs., depending on steel content, shape and size

HMC-10A

Click for larger view.
Call for Pricing

HMC-50A

Click for larger view.
Call for Pricing

Model HMC-10A HMC-50A
Dimensions ø4.49"x8.94" ø4.49"x19.69"
Weight 3.3 Lbs. 4.2 Lbs.
Price Click for Price Click for Price


TOP
KANETEC Hand Magnet with Grip (Model HM)

Features:
  • For picking up, collecting, removing steel in liquids, or narrow, hard to reach places.
  • Specially helpful to reach tools dropped in narrow unreachable areas.
  • Removable arm
  • Maximum total length is 41.3"

HM-6LF

Click for larger view.
Call for Pricing

Model HM-6LF
Holding Power 55 LBF
Weight 3.3 Lbs.


| magnetic chuck | magnetic tool | magnetic base | magnetic equipment |

TOP
