Cylindrical Grinder

JMC Series GROMAX Universal Cylindrical Grinding Machine [Optional Accessories]

Accessories
PF Series Cartridge Spindle for Surface/Cylindrical Grinder
KE Series
Cartridge Spindle for Surface/Cylindrical Grinder


TOP

GROMAX Universal Cylindrical Grinding Machine
  • Automatic grinding cycle, rapid wheelhead approach and retraction, automatic coarse, fine feed, spark-out, wheelhead retract all in one setting!
  • Suitable for plunge, traverse, and taper grinding.
Complete with standard accessory: Swivel Type Workhead

JMC600AGC

Click for larger view.

JMC1000AGC

Click for larger view.


Model
Price
JMC400H
Click for Price/Shop Online
JMC400AGC
Click for Price/Shop Online
JMC600H
Click for Price/Shop Online
JMC600AGC
Click for Price/Shop Online
JMC1000H
Click for Price/Shop Online
JMC1000AG
Please Contact Us
for More Information
H: Hydraulic table. Rapid approach & retraction
AGC:
Hydraulic table. Rapid approach & retraction; automatic grinding cycle features coarse, fine feed and spark-out all in one setting. Suitable for plunge, traverse and taper grinding.

Features:

  • Machine structure: Body made of Meehanite casting with honeycomb ribs providing extra rigidity
  • Workhead: "swiveled 30 clockwise, 90 counter clockwise" Equipped with angular contact ball bearings
  • Wheelhead: equipped with auto lube system to ensure accuracy and spindle life
  • Accuracy: Repeatability 0.00005"; Positioning 0.00005"
  • Swivel headstock
  • Lever operator tailstock
  • Table swivel with dial indicator for taper grinding
  • Coolant tank with splash guards
  • Wheel flange & extractor
  • Automatic lubrication system
  • Wheel dresser
Specifications:

Model

JMC600 JMC1000
Capacity
Distance between centers 23.6" 39.4"
Max. revolving diameter over bed 8.26" 12.2"
Hydraulic tank capacity 13.75 Gal. 16.67 Gal.
Coolant tank capacity 19 Gal. 26 Gal.
Table
Hydraulic table speed 2.95~118"/min. 1.96~118"/min.
Traverse per handwheel rotation 0.5"/rev. 0.5"/rev.
Swivel angle (clockwise) 0 0
Swivel angle (counterclockwise) 12 9
Workhead & Tailstock
Workhead work center taper No.4 No.4
Tailstock work center taper No.3 No.4
Workhead swivel angle (clockwise) 30 0
Workhead swivel angle (counterclockwise) 90 90
Workhead spindle speed 100, 140, 232,
302, 364, 504 rpm
20~100,
60~380 rpm
Wheelhead
Grinding wheel spindle speed 1700, 2000 rpm 1530, 1800 rpm
Grinding wheel size (O.D.xWidthxI.D.) 14x1.5x5" 16x1.25x5"
Infeed per graduation of handwheel 0.0002" 0.0002"
Infeed per revolution of handwheel 0.08" 0.08"
Rapid infeed stroke 1.575" 1.575"
Wheelhead swivel angle 30 30
Electric Motor
Wheel drive motor 5 HP 5 HP
Workhead spindle motor 1/2 HP 1/2 HP
Hydraulic pump motor 1 HP 2 HP
Wheel spindle lubricator motor 1/4 HP 1/4 HP
Coolant pump motor 1/8 HP 1/4 HP
Slide way lubricator motor 1/8 HP 1/8 HP
Floor space 84x75" 117x79"
Net weight 4840 Lbs. 7700 Lbs.
Price
JMC600H
JMC600AGC
JMC1000H
JMC1000AGC
Please Contact Us
for More Information

Standard Accessories: [Pictures of standard accessories]
1. Workhead (swivel type)
2. Tailstock
3. Centers of workhead & tailstock
4. Standard grinding wheel
5. Wheel flange & extractor
6. High & low speed pulleys of wheel motor
7. Wheel dresser
8. Standard coolant supply attachment
9. Lubricant supply attachment
10. Indicator of table swivel with dial indicator
11. Splash guard
12. Tool box with necessary hand tools

TOP
Optional Accessories: [Pictures of optional accessories]

Description

For JMC600 For JMC1000
1. Internal Grinding Attachment JMC600.1 JMC1000.1 Please Contact Us for More Information
2. 3-point Steady Rest JMC600.2 JCM1000.2
Please Contact Us for More Information
3. 2-point Steady Rest JMC600.3 JCM1000.3
Please Contact Us for More Information
4. 2-point heavy load rest (a couple)
N/A
JCM1000.4
Please Contact Us for More Information
5. 3-jaw Chuck w/mounting plate JMC600.5 JCM1000.5
Please Contact Us for More Information
6. 4-jaw chuck w/ mounting plate JMC600.6 JCM1000.6
Please Contact Us for More Information
7. Permanent magnetic chuck w/plate JMC600.7 JCM1000.7
Please Contact Us for More Information
8. Roll coolant magnetic chuck w/plate JMC600.8 JCM1000.8
Please Contact Us for More Information
9. Paper band filter JCM600.9
Please Contact Us for More Information
JCM1000.9
Please Contact Us for More Information
10. Radius Forming Attachment JMC600.10
Please Contact Us for More Information
JCM1000.10
Please Contact Us for More Information
11. Angular Forming Attachment JMC600.11
Please Contact Us for More Information
JCM1000.11
Please Contact Us for More Information
12. Extra Wheel Flange JMC600.12
Please Contact Us for More Information
JCM1000.12
Please Contact Us for More Information
13. Spare grinding wheel JMC600.13
Please Contact Us for More Information
JCM1000.13
Please Contact Us for More Information
14. Static balancing unit JMC600.14
Please Contact Us for More Information
JCM1000.14
Please Contact Us for More Information
15. Carbide tipped full and half center (each) JMC600.15
Please Contact Us for More Information
JCM1000.15
Please Contact Us for More Information
16. Work carrier JMC600.16
Please Contact Us for More Information
JCM1000.16
Please Contact Us for More Information
17. Grinding gage for manual sizing JMC600.17
Please Contact Us for More Information
JCM1000.17
Please Contact Us for More Information
18. Hydraulic wheel dresser holder (use when w/o I.D. attachment) JMC600.18
Please Contact Us for More Information
JCM1000.18
Please Contact Us for More Information
19. Wheel micro infeed attachment (for AGC model) JMC600.19
Please Contact Us for More Information
JCM1000.19
Please Contact Us for More Information
20. Hydraulic tailstock JMC600.20
Please Contact Us for More Information
JCM1000.20
Please Contact Us for More Information


TOP

GROMAX Cartridge Spindle PF Series for Surface/Cylindrical Grinder




Specifications:
Model
Max. Speed
(rpm)
Motor
(HP)
Runout Accuracy in Taper (µm)
Max. Temperature Rise (°C)
Price
PF-80A-10-36
3600
1
1.5
+10
Please Call for More Information
PF-80A-10-60
6000
1
1.5
+10
Please Call for More Information
PF-80A-20-36
3600
2
1.5
+10
Please Call for More Information
PF-80A-20-60
6000
2
1.5
+10
Please Call for More Information
PF-80B-10-36
3600
1
1.5
+10
Please Call for More Information
PF-80B-10-60
6000
1
1.5
+10
Please Call for More Information
PF-80B-20-36
3600
2
1.5
+10
Please Call for More Information
PF-80B-20-60
6000
2
1.5
+10
Please Call for More Information
PF100-30-24
2400
3
2.0
+10
Please Call for More Information
PF100-30-50
5000
3
2.0
+10
Please Call for More Information
PF100-50-24
2400
5
2.0
+10
Please Call for More Information
PF100-50-50
5000
5
2.0
+10
Please Call for More Information
PF500-50-18
1800
5
2.0
+10
Please Call for More Information
PF500-50-28
2800
5
2.0
+10
Please Call for More Information
PF500-75-18
1800
7.5
2.0
+10
Please Call for More Information
PF500-75-28
2800
7.5
2.0
+10
Please Call for More Information

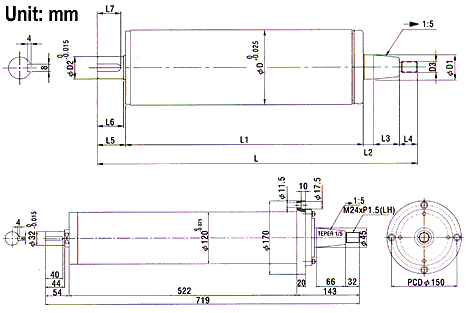

UNIT: MM
Model
D
D1
D2
D3
L
L1
L2
L3
L4
L5
L6
L7
PF-80A
80
26
24
M12xP1.5(LH)
337
250
11
27
19
30
30
25
PF-80B
80
26
24
M12xP1.5(LH)
403
317
5
32
19
30
30
25
PF-100
100
36
28
M16xP1.5(LH)
496
366
18
45
27
40
38
32


TOP

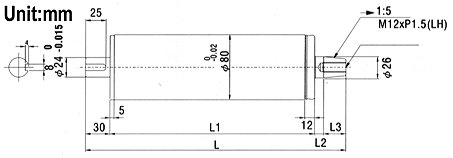

GROMAX Cartridge Spindle KE Series for Surface/Cylindrical Grinder




Specifications:
Model
Max. Speed
(rpm)
Motor
(HP)
L (mm)
L1 (mm)
L2 (mm)
L3 (mm)
Runout Accuracy in Taper (µm)
Max. Temperature Rise (°C)
Price
KE-80A-10-60
6000
1
316
251
11
24
1.5
+10
Call
KE-80A-10-120
12000
1
316
251
11
24
1.5
+10
Call
KE-80A-20-60
6000
2
316
251
11
24
1.5
+10
Call
KE-80A-20-120
12000
2
316
251
11
24
1.5
+10
Call
KE-80B-10-60
6000
1
356
284
11
31
1.5
+10
Call
KE-80B-10-120
12000
1
356
284
11
31
1.5
+10
Call
KE-80B-20-60
6000
2
356
284
11
31
1.5
+10
Call
KE-80B-20-120
12000
2
356
284
11
31
1.5
+10
Call
