SUBURBAN Hoist Ring by Jergens, Inc.

THR Side-Pull Hoist Ring
THR
Center-Pull Hoist Ring



TOP

SUBURBAN Side-Pull Hoist Ring

Features:
  • Made of alloy steel, finished with black oxide.

  • 200% proof-tested.

  • Extra-large diameter rings let you use almost any size hook.

  • Clevis is x-rayed.

  • Available in Fixture Pro design software and PartSpec CD.

  • Full swivel action allows you to flip and turn parts without unhooking.

  • Rated at 5:1 strength factor.

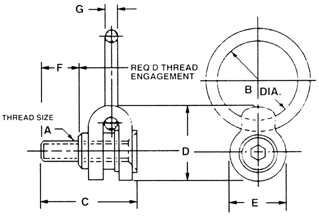

Side-Pull Hoist Rings
Part
#
LOAD1
CAPACITY
 (lbs)
A B C D E F G TORQUE2
(ft. lbs)
WT.
(lbs)
PRICE
THR47313 1800 1/2-13 3 3-3/8 3-3/16 2-3/8 1 5/8 15.0 3.25 Call
THR47314 2500 5/8-11 3 3-3/8 3-3/16 2-3/8 1-1/4 5/8 25.0 3.25 Call
THR47315 4100 3/4-10 4 5 5 3-3/4 1-1/2 1 50.0 11.25 Call



Metric Side-Pull Hoist Rings
Part
#
LOAD1
CAPACITY
 (kg)
A B C D E F G THREAD
TORQUE2
(kg - m)
WT.
(kg)
PRICE
THR47353 725 M12 X 1.75 76.2 85 81 60.3 24 15.9 2.00 1.47 Call
THR47354 1400 M16 X 2.0 76.2 94 81 60.3 31 15.9 3.50 1.47 Call
THR47355 2290 M20 X 2.5 101.6 133 125.4 95.3 40 25.4 7.00 5.10 Call

1 Stated load capacity is based on specific head torques as shown in chart.
2 It is recommended that these torques be used when installing hoist rings.

Replacement Bolts            Replacement Bolts
                                            (Metric)

Part # Thread Size Wt. (lbs)

Part #

Thread Size

Wt. (kg)

THR47373 1/2-13 .17 THR47393 M12 .07
THR47344 5/8-11 .28 THR47394 M16 .14
THR47345 3/4-10 .59 THR47395 M20 .32


TOP

SUBURBAN Center-Pull Hoist Ring


Features:

  • Made of alloy steel, finished with black oxide.

  • 200% proof-tested.

  • Available in FixturePro design software and PartSpec CD.

  • Full swivel action allows you to flip and turn parts without unhooking.

  • Rated at 5:1 strength factor.

  • Clevis, bolt, pins, base washer and bushing are magnetic particle inspected.

  • Washer made of gold iridite.

Center-Pull Hoist Rings
THREAD
SIZE A
LOAD1
CAP.
(lbs)
STANDARD
CLEVIS
LONG
CLEVIS
THREAD
LENGTH
D E F G H TORQUE2
(ft. lbs)
WT.
(lbs)
PRICE
Part #          B Part #        B C
1/2-13 2500

THR23410    3.75

        

1-1/16 1.20 .69 .50 2.56 2-3/8 28 1.0
$93
1/2-13 2500

THR23411    4.78

THR23511   6.72

3/4 1.50 .88 .75 3.52 2-3/8 28 2.5
$93
1/2-13 2500

THR23412    4.78

THR23512   6.72

1 1.50 .88 .75 3.52 2-3/8 28 2.5
$93
1/2-13 2500 THR23413    4.78 THR23513   6.72 1-1/4 1.50 .88 .75 3.52 2-3/8 28 2.5
$93
5/8-11 4000 THR23414    4.78 THR23514   6.72 1 1.50 .88 .75 3.52 2-1/4 60 2.7
$93
5/8-11 4000 THR23415    4.78 THR23515   6.72 1-1/4 1.50 .88 .75 3.52 2-1/4 60 2.7
$93
3/4-10 5000 THR23417    4.78 THR23517   6.72 1 1.50 .88 .75 3.52 2-1/8 100 3.0
$93
3/4-10 5000 THR23418    4.78 THR23518   6.72 1-1/2 1.50 .88 .75 3.52 2-1/8 100 3.0
$93
3/4-10 7000 THR23420    6.52 THR23520   8.11 1 2.31 1.40 1.00 5.14 2-15/16 100 7.0
$200
3/4-10 7000 THR23421   6.52 THR23521   8.11 1-1/2 2.31 1.40 1.00 5.14 2-15/16 100 7.0
$200



Metric Center-Pull Hoist Rings
THREAD
SIZE A
LOAD1
CAP.
 (kg)
STANDARD
CLEVIS
LONG
CLEVIS
THREAD
LENGTH
D E F G H THREAD
TORQUE2
(kg - m)
WT.
(lbs)
Part #          B Part #        B C

M12 X 1.75

1050

THR23462    121.4

THR23562    170.7 1-1/16 1.20 .69 .50 2.56 2-3/8 28 1.0

M16 X 2.0

1900

THR23465    121.4

THR23565    170.7

3/4 1.50 .88 .75 3.52 2-3/8 28 2.5

M20 X 2.5

2150

THR23468    121.4

THR23568    170.7

1 1.50 .88 .75 3.52 2-3/8 28 2.5

M20 X 2.5

3000 THR23471    165.6 THR23571    206.0 1-1/4 1.50 .88 .75 3.52 2-3/8 28 2.5

M24 X 3.0

4200 THR23474    165.6 THR23574    206.0 1 1.50 .88 .75 3.52 2-1/4 60 2.7

1 Stated load capacity is based on specific head torques as shown in chart.
2 It is recommended that these torques be used when installing hoist rings.

Bolt Kits3

Part #

Wt. (lbs)

THR23662 .06
THR23665 .12
THR23668 .21
THR23671 .23
THR23674 .40

3 Bolt Kit contains bolt and retaining ring.
