SUBURBAN Pallet Fixture

TSH Hexagonal Column
TSO
Octagonal Column
TSC Square Column
T-SLOT T-Slotted
TST T-Type Column
TSW T-Type Window
TTPS/TTPR Plain Tooling Plate
TTPS-D/TTPR-D Grind Tooling Plate


TOP

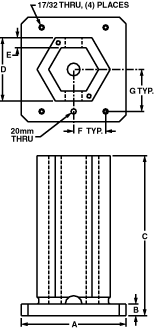

SUBURBAN Hexagonal Column


Features:
  • 6 accurate mounting surfaces, for an easy way to increase production.
  • Made from one-piece, class 40 cast iron.
  • Base and sides milled flat, parallel & square to 0.001" in 12".
  • DIN mounting standard, JIS mounting optional.
  • All have drilled and tapped lifting holes in the top surface and coolant drain holes at the base of the column.
  • Available in plain milled or drilled & tapped with 3/8-16 holes on a 2" grid pattern.
  • All sizes also available in aluminum or precision steel weldments.
  • Custom hole sizes and patterns available unpon request.


MODEL TYPE A B C D E F G H WT(#) PRICE
TSH-1
TSH-2
MILLED
MILLED
15.70
19.70
1.75
1.75
26.00
26.00
9.50
13.00
1.50
1.75
6.30
7.87
1/2" OR M12
1/2" OR M12
20MM
20MM
375
610
Call
Call

SPECIAL SIZES AVAILABLE UPON REQUEST


TOP

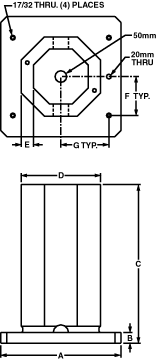

SUBURBAN Octagonal Column


Features:
  • 8 mounting surfaces are ideal for high part volume applications.
  • Made from one-piece, stress-relieved, class 40 cast iron.
  • Base and sides milled flat, parallel, and square to 0.001" in 12".
  • DIN mounting standard, JIS mounting optional.
  • All have drilled and tapped lifting holes in the top surface and coolant drain holes at the base of the column.
  • Available in plain milled or drilled & tapped with 3/8-16 holes on a 2" grid pattern.
  • All sizes also available in aluminum or precision steel weldments.
  • Custom hole sizes and patterns available upon request.


MODEL TYPE A B C D E F G H WT(#) PRICE
TSO-1
TSO-2
MILLED
MILLED
400MM
500MM
1.75
1.75
26.00
26.00
9.50
13.00
1.50
1.75
6.30
7.87
1/2" OR M12
1/2" OR M12
20MM
20MM
360
590
Call
Call

SPECIAL SIZES AVAILABLE UPON REQUEST


TOP

SUBURBAN Square Column

Features:
  • Provides a solid base for mounting vises, fixtures, or sub-plates.
  • Made from one-piece, class 40 cast iron that has been stress-relieved.
  • Base and sides milled flat, parallel,and square to 0.001" in 12".
  • DIN mounting standard, JIS mounting optional.
  • All square columns have drilled and tapped lifting holes in the top surface and coolant drain holes at the base of the column.
  • Available in plain milled or drilled & tapped with 3/8-16 holes on a 2" grid pattern.
  • Custom hole sizes and grid patterns available upon request.
  • All sizes also available in aluminum or precision steel weldments.


MODEL TYPE A B C D E F G H WT(#) PRICE
TSC-1
TSC-1-D
TSC-2
TSC-2-D
TSC-3
TSC-3-D
TSC-4
TSC-4-D
MILLED
DRILLED
MILLED
DRILLED
MILLED
DRILLED
MILLED
DRILLED
15.70
15.70
15.70
15.70
19.70
19.70
19.70
19.70
1.75
1.75
1.75
1.75
2.00
2.00
2.00
2.00
22.00
22.00
26.00
26.00
22.00
22.00
26.00
26.00
8.00
8.00
10.00
10.00
8.00
8.00
10.00
10.00
1.12
1.12
1.12
1.12
1.12
1.12
1.12
1.12
6.30
6.30
6.30
6.30
7.87
7.87
7.87
7.87
1/2" OR M12
1/2" OR M12
1/2" OR M12
1/2" OR M12
1/2" OR M12
1/2" OR M12
1/2" OR M12
1/2" OR M12
20MM
20MM
20MM
20MM
20MM
20MM
20MM
20MM
275
275
365
365
360
360
450
450
Call
Call
Call
Call
Call
Call
Call
Call


TOP

SUBURBAN T-Slotted

Features:
  • Standard 5/8 t-slots provide for quick and easy set-ups.
  • Made from one-piece, class 40 cast iron that has been stress-relieved.
  • Base and sides milled flat, parallel & square to 0.001" in 12".
  • DIN mounting standard, JIS mounting optional.
  • All have drilled and tapped lifting holes in the top surface and coolant drain holes at the base of the column.
  • T-slot spacing in 5" pattern for standard mounting of most workholding devices.



MODEL TYPE A B C D E F G H WT(#)

PRICE

T-SLOT-1
T-SLOT-2
MILLED
MILLED
15.70
19.70
1.75
2.00
26.00
26.00
10.00
12.00
2.00
2.00
6.30
7.87
1/2" OR M12
1/2" OR M12
20MM
20MM
445
625
Call
Call

SPECIAL SIZES AVAILABLE UPON REQUEST


TOP

SUBURBAN T-Type Column


Features:
  • Provides an accurate vertical base for mounting vises, fixtures, OR sub-plates.
  • Made from one piece, class 40 cast iron that has been stress relieved.
  • Base and sides milled flat, parallel & square to 0.001" in 12".
  • DIN mounting standard, JIS mounting optional.
  • Available in plain milled OR drilled & tapped with 3/8-16 holes on a 2" grid pattern
  • All sizes also available in aluminum or precision steel weldments.
  • Custom hole sizes and grid patterns available upon request.


MODEL A B C D E F G WT(#) PRICE
TST-1
TST-2
TST-400536
TST-3
TST-4
TST-500536
TST-5
TST-630636
400MM
400MM
400MM
500MM
500MM
500MM
630MM
630MM
1.75
1.75
1.75
2.00
2.00
2.00
2.25
2.25
18.00
24.00
36.00
18.00
24.00
36.00
28.50
36.00
3.00
4.00
.00
3.00
4.00
5.00
5.00
6.00
6.30
6.30
6.30
7.87
7.87
7.87
9.84
9.84
1/2" OR M12
1/2" OR M12
1/2" OR M12
1/2" OR M12
1/2" OR M12
1/2" OR M12
1/2" OR M12
1/2" OR M12
20MM
20MM
20MM
20MM
20MM
20MM
20MM
20MM
310
480
978
450
660
1279
1100
1919
Call
Call
Call
Call
Call
Call
Call
Call

SPECIAL SIZES AVAILABLE UPON REQUEST


TOP

SUBURBAN T-Type Window

Features:
  • Provides an accurate base for mounting tooling and fixture plates.
  • Allows for front and back machining of parts.
  • Made from one-piece, class 40 cast iron that has been stress-relieved.
  • DIN mounting standard, JIS mounting optional.
  • Base and sides milled flat, parallel, and square to 0.001" in 12".
  • All sizes also available in aluminum or precision steel weldments.

MODEL TYPE A B C D E F G H I WT(#) PRICE
TSW-1
TSW-2
TSW-3
TSW-4
MILLED
MILLED
MILLED
MILLED
400MM
400MM
500MM
500MM
1.75
1.75
2.00
2.00
18.00
24.00
18.00
24.00
3.00
4.00
3.00
4.00
6.30
6.30
7.87
7.87
1/2" OR M12
1/2" OR M12
1/2" OR M12
1/2" OR M12
20MM
20MM
20MM
20MM
9.25
15.25
9.25
15.25
9.20
9.20
12.70
12.70
245
330
355
455
Call
Call
Call
Call

SPECIAL SIZES AVAILABLE UPON REQUEST


TOP

SUBURBAN Plain Tooling Plate

         Features:
  • Plain tooling plates provide a convenient base for custom workholding solutions.

  • Made from class 40 cast iron, stress-relieved and annealed.

  • Ground top and bottom to close tolerances.

  • Special sizes and hole patterns available upon request.

SQUARE TOOLING PLATES

Model #

A B C (0.001") D E price
TTPS-1616200 400mm (15.748") 400mm (15.748") 50mm (1.968") 160mm 160mm Call
TTPS-2020200 500mm (19.685") 500mm (19.685") 50mm (1.968") 200mm 200mm Call
TTPS-2424200 630mm (24.803") 630mm (24.803") 50mm (1.968") 250mm 250mm Call
TTPS-3232238 800mm (31.496") 800mm (31.496") 60mm (2.362") 300mm 300mm Call
RECTANGULAR TOOLING PLATES

Model #

A B C (0.001") D E price
TTPR-1520200 400mm (15.748") 500mm (19.685") 50mm (1.968") 150mm 200mm Call
TTPR-2024200 500mm (19.385") 630mm (24.803") 50mm (1.968") 200mm 250mm Call
TTPR-2432238 630mm (24.803") 800mm (31.496") 60mm 250mm 300mm Call


Plain Tool Plate Diagram



TOP

SUBURBAN Grid Tooling Plate


  • Grid Tooling plates provide a convenient base for "semi" custom workholding solutions.

  • Made from class 40 cast iron, stress-relieved and annealed.

  • Ground top and bottom to close tolerances

  • Special sizes and hole patterns available upon request.

  • Alternating pattern of 1/2 - 13 tapped holes and .5005/.501 I.D. bushings.

SQUARE TOOLING PLATES

Model #

A B C (0.001") D E price
TTPS-1616200-D 400mm (15.748") 400mm (15.748") 50mm (1.968") 160mm 160mm Call
TTPS-2020200-D 500mm (19.685") 500mm (19.685") 50mm (1.968") 200mm 200mm Call
TTPS-2424200-D 630mm (24.803") 630mm (24.803") 50mm (1.968") 250mm 250mm Call
TTPS-3232238-D 800mm (31.496") 800mm (31.496") 60mm (2.362") 300mm 300mm Call
RECTANGULAR TOOLING PLATES

Model #

A B C (0.001") D E price
TTPR-1520200-D 400mm (15.748") 500mm (19.685") 50mm (1.968") 150mm 200mm Call
TTPR-2024200-D 500mm (19.385") 630mm (24.803") 50mm (1.968") 200mm 250mm Call
TTPR-2432238-D 630mm (24.803") 800mm (31.496") 60mm (2.362") 250mm 300mm Call

Grid Tool Plate Diagram
