SUBURBAN Magnetic Chuck

EMCB Electromagnetic Chuck & Control
MTC Magnetic Toolmaker's Chuck
DMB Magnum-Force™ Chuck
RMC Round Permanent Magnetic Chuck
MCB Surface Grinder Chuck



TOP
SUBURBAN Electromagnetic Chuck & Control

Features:
  • Top plate has 1/8" steel poles and 1/16" stainless steel separators.
  • Chucks are completely sealed against dirt and liquids, can be used on EDM machines.
  • Longitudinal (lengthwise) OR transverse (crosswise) pole models available.
  • Two clamps, backrail and side rail included.
TRANSVERSE POLES LONGITUDINAL POLES
MODEL SIZE WATTS WT(#) PRICE MODEL SIZE WATTS WT(#) PRICE
EMCB-612-T
EMCB-618-T
EMCB-815-T
EMCB-818-T
EMCB-824-T
EMCB-1015-T
EMCB-1024-T
EMCB-1036-T
EMCB-1216-T
EMCB-1218-T
EMCB-1224-T
EMCB-1230-T
EMCB-1236-T		 6" x 12" x 3-3/4"
6" x 18" x 3-3/4
8" x 15" x 3-3/4"
8" x 18" x 3-3/4"
8" x 24" x 4"
10" x 15" x 3-3/4"
10" x 24" x 3-3/4"
10" x 36" x 4"
12" x 16" x 4"
12" x 18" x 4"
12" x 24" x 4"
12" x 30" x 4"
12" x 36" x 4"		 72
130
125
150
220
160
240
350
200
225
280
390
430
 75
117
132
160
210
165
255
370
200
225
310
371
442
 Call
Call
Call
Call
Call
Call
Call
Call
Call
Call
Call
Call
Call		 EMCB-612-L
EMCB-618-L
EMCB-815-L
EMCB-818-L
EMCB-824-L
EMCB-1015-L
EMCB-1024-L
EMCB-1036-L
EMCB-1216-L
EMCB-1218-L
EMCB-1224-L
EMCB-1230-L
EMCB-1236-L
 6" x 12" x 3-3/4"
6" x 18" x 3-3/4"
8" x 15" x 3-3/4"
8" x 18" x 3-3/4"
8" x 24" x 4"
10" x 15" x 3-3/4"
10" x 24" x 3-3/4"
10" x 36" x 4"
12" x 16" x 4"
12" x 18" x 4"
12" x 24" x 4"
12" x 30" x 4"
12" x 36" x 4"
 56
110
85
100
150
100
180
260
135
150
200
250
300
 75
117
132
160
210
165
255
370
200
225
310
371
442
 Call
Call
Call
Call
Call
Call
Call
Call
Call
Call
Call
Call
Call



CONTROLS

MODEL FEATURES PRICE
C2-VRS-11
CAV-1.5
CAV-3
CAV-5
 150 watts, variable power, manual release.
150 watts, variable power, automatic release.
300 watts, variable power, automatic release.
500 watts, variable power, automatic release.
 Call
Call
Call
Call


TOP
SUBURBAN Magnetic Toolmaker's Chuck

Features:
  • All models precision ground flat, square and parallel to an overall accuracy of 0.0005".
  • Top, bottom and end magnetize simultaneously.
  • Model MTC-VB has "V" capacity of 2-3/4" dia.
  • Model MTC-LFP has 3/16" x 1/16" fine pole construction for holding small or thin parts; and removable side and end rails.
MODEL LENGTH WIDTH HEIGHT WT(#) PRICE
MTC-S
MTC-L
MTC-LFP
MTC-VB
MTC-VB-M**
 5"
5-1/2"
5-1/2"
5-1/2"
5-1/2"
 2"
2-3/4"
2-3/4"
2-3/4"
2-3/4"
 2"
2-1/2"
3"
3-5/8"
3-5/8"
 6
11
12
13
26
 Call
Call
Call
Call
Call
*MATCHED PAIR OF MTC-VB


TOP

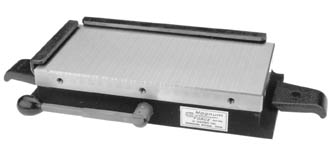

SUBURBAN Magnum-Force™ Chuck

PERMANENT MAGNETIC CHUCKS WITH DUAL MAGNETS

DMB-612
OUR BEST CHUCK!

Features:
  • DUAL MAGNETS provide 120% MORE POWER & positive shut-off for easy workpiece removal.
  • CERAMIC MAGNETS never lose their holding power.
  • SUBMERSIBLE DESIGN for use in EDM OR other fluids.
  • MAINTENANCE FREE because chucks are sealed & lubricated.
  • RIGID WORK SURFACE provided by laminated & brazed top plate.
  • MAXIMUM HOLDING of both small & large parts due to combination fine/standard pole spacing.
  • LOW HEIGHT for more work clearance.
  • CLAMPS INCLUDED.

FULL 24 MONTH WARRANTY.
MODEL L W H WT(#) PRICE
DMB-44
DMB-48
DMB-510
DMB-512
DMB-66
DMB-610
DMB-612
DMB-614
DMB-618
 4"
8"
10"
12"
6-1/2"
10"
12"
14"
18"
 4"
4"
5"
5"
6-1/2"
6"
6"
6"
6"
 2-3/8"
2-3/8"
2-1/2"
2-1/2"
2-1/2"
2-1/2"
2-1/2"
2-1/2"
2-1/2"
 10
20
28
35
25
35
44
52
66
 Call
Call
Call
Call
Call
Call
Call
Call
Call
MODEL L W H WT(#) PRICE
DMB-815
DMB-818
DMB-820
DMB-824
DMB-1015
DMB-1018
DMB-1020
DMB-1024
DMB-1218
DMB-1224
 15"
18"
20"
24"
15"
18"
20"
24"
18"
24"
 8"
8"
8"
8"
10"
10"
10"
10"
12"
12"
 2-1/2"
2-1/2"
2-1/2"
2-1/2"
2-1/2"
2-1/2"
2-1/2"
3-1/2"
3-1/2"
3-1/2"
 73
87
102
116
90
101
125
134
158
192
 Call
Call
Call
Call
Call
Call
Call
Call
Call
Call

SPECIAL SIZES AVAILABLE UPON REQUEST

TOP
SUBURBAN Round Permanent Magnetic Chuck

Features:
  • Permanent ceramic magnets for superior holding power, never lose their strength.
  • Back surface of the aluminum chuck body has tapped holes and turned counterbore for convenient mounting on machines.
  • All models are watertight except 5-1/4" dia. which uses the swing-type on-off method.
  • Standard pole models have 1/4" poles & 1/8" separators, fine pole models have 1/8" poles & 1/8" separators.

STANDARD POLE

MODEL DIAMETER HEIGHT COUNTER-BORE BOLT CIRCLE TAPPED HOLES WT(#)
PRICE
DIA. DEPTH
RMC-5
RMC-6
RMC-9
RMC-12
RMC-16
 5-1/2"
6-1/4"
9-1/4"
12-1/4"
16"
 3"
3"
3"
3"
3"
 3"
3"
4"
4"
8"
 1/8"
1/8"
3/16"
3/16"
3/16"
 4"
4"
5"
5"
9"
 (4) 1/4-20x1/2"
(4) 1/4-20x1/2"
(4 )3/8-16x1/2"
(4) 3/8-16x1/2"
(6) 3/8-16x1/2"
 15
17
36
60
96
 Click for Price/
Click for Price
Click for Price
Click for Price
Click for Price

FINE POLE

MODEL DIAMETER HEIGHT COUNTERBORE BOLT CIRCLE TAPPED HOLES WT(#)
PRICE
DIA. DEPTH
RMC-6FP
RMC-8FP
RMC-10FP
RMC-12FP
 6-1/4"
7-3/4"
10"
12-1/4"
 3"
3"
3"
3"
 3"
3"
3"
4"
 1/8"
3/16"
3/16"
3/16"
 4"
5"
5"
5"
 (4) 1/4-20x1/2"
(4) 3/8-16x1/2"
(4) 3/8-16x1/2"
(4) 3/8-16x1/2"
 18
26
43
62
 Click for Price
Click for Price
Click for Price
Call


TOP
SUBURBAN Surface Grinder Chuck

Features:
  • Ceramic magnets provide superior holding power that never fades.
  • Sealed against dirt and liquids; can be used in EDM machines.
  • Front-mounted handle is removable to eliminate interference.
  • Handle, back rail, side rail and two clamps included.
  • Overall height is 2-5/8".
Standard Pole
(1/4" poles & 1/8" separators)
MODEL L W WT(#) PRICE
MCB-47
MCB-510
MCB-612
MCB-614
MCB-618
MCB-812
MCB-815
MCB-818
MCB-824
MCB-1015
MCB-1018
MCB-1024
MCB-1212
MCB-1218
MCB-1224
 7"
10"
12"
14"
18"
12"
15"
18"
24"
15"
18"
24"
12"
18"
24"
 4"
5"
6"
6"
6"
8"
8"
8"
8"
10"
10"
10"
12"
12"
12"
 19
35
47
55
70
63
79
95
126
111
134
178
107
161
213
 Call
Call
Call
Call
Call
Call
Call
Call
Call
Call
Call
Call
Call
Call
Call
Standard Pole
(1/4" poles  & 1/8" separators)
MODEL L W WT(#) PRICE
MCB-47-FP
MCB-510-FP
MCB-612-FP
MCB-614-FP
MCB-618-FP
MCB-812-FP
MCB-815-FP
MCB-818-FP
MCB-824-FP
MCB-1015-FP
MCB-1018-FP
MCB-1024-FP
MCB-1212-FP
MCB-1218-FP
MCB-1224-FP
 7"
10"
12"
14"
18"
12"
15"
18"
24"
15"
18"
24"
12"
18"
24"
 4"
5"
6"
6"
6"
8"
8"
8"
8"
10"
10"
10"
12"
12"
12"
 19
35
47
55
70
63
79
95
126
111
134
178
107
161
213
 Call
Call
Call
Call
Call
Call
Call
Call
Call
Call
Call
Call
Call
Call
Call
